5150® Series Deluxe

Engineered for speed, comfort and full-throttle attitude, the reimagined 5150® Series Deluxe is an iconic blast from the past that blends both throwback and modernized features.

Like its predecessor, the 5150 Deluxe features a modified Strat®-style basswood body with a deeper upper body curve. The graphite-reinforced bolt-on quartersawn maple neck features a comfortable modified “C” profile, hand-rubbed urethane back finish, heel-mount truss rod adjustment wheel and matching “hockey stick” headstock with EVH® logo decal. Built for smooth and speedy playability, the 12”-16” compound radius ebony fingerboard has 22 jumbo frets and cream dot inlays.

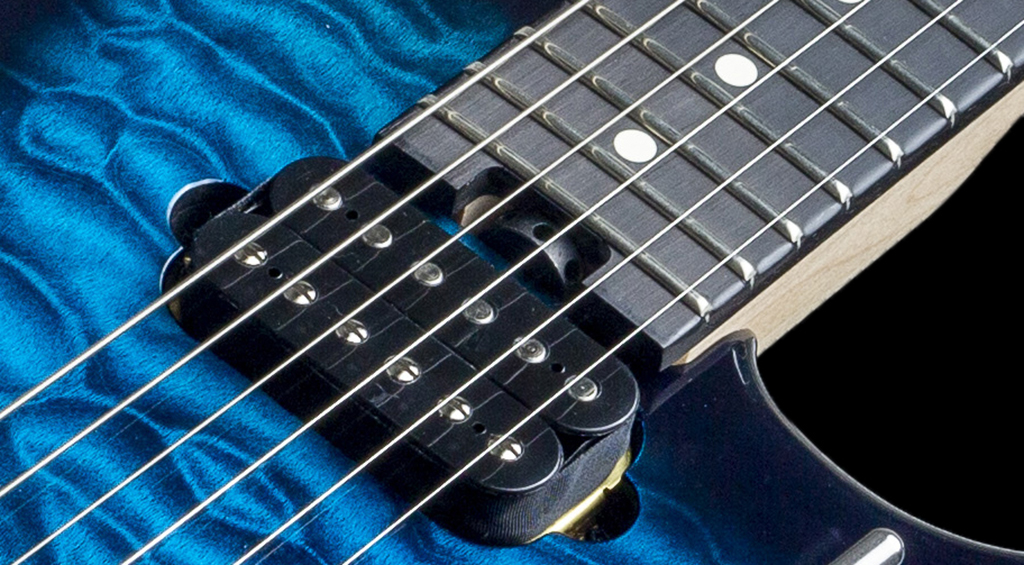

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 Deluxe is outfitted with an HH pickup configuration controlled by a quick access three-way toggle on the lower bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucking neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A high-friction tone knob provides unmatched tonal performance, while the custom designed EVH-branded low-friction volume knob creates even-volume tapering for the smoothest volume swells.

Decked out with a “dive-bomb” certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

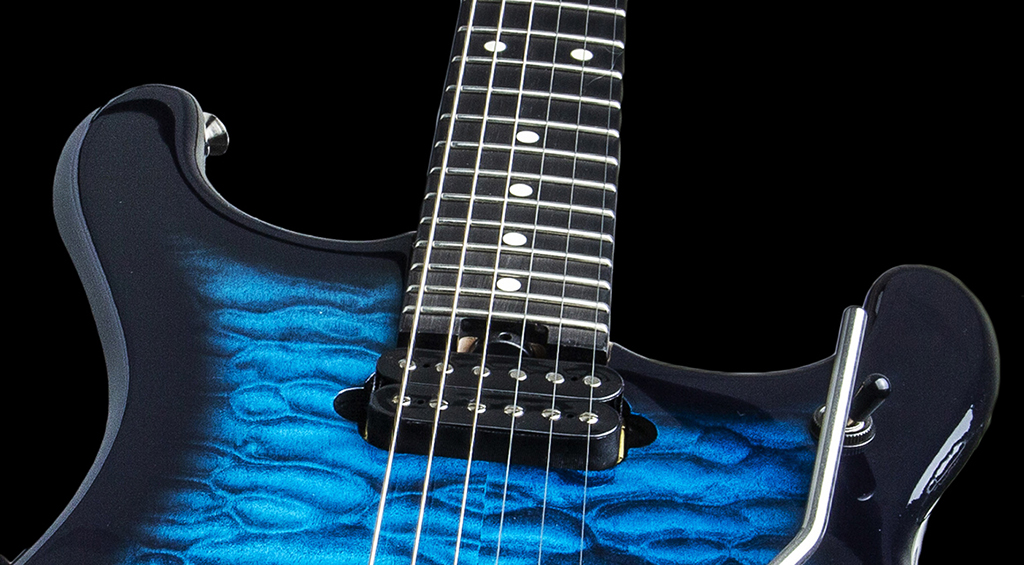

A stylized modern spin on a fan favorite, the 5150 Deluxe is sure to stun with a rippling quilt maple top that is elegantly dressed in Tobacco Burst or Transparent Blue Burst and finished off with all-chrome hardware, including the EVH-branded Gotoh® tuning machines.

  • Color Transparent Blue Burst
  • Model 5108000579
  • Series 5150® Series Guitars
  • Street Price $999.99

Video

Features

Bolt-On Quartersawn Maple Neck with Eddie Van Halen's Modified “C” Backshape

Bolt-on is a type of neck construction that joins the maple neck to the body of the guitar with screws or bolts, resulting in bright tone with more control. The quartersawn grain runs the length of the neck and as well as being visually appealing, is less susceptible to shrinking, warping or splitting. Graphite-reinforcement rods flank the truss rod for even more increased neck stability, while your fretting hand will feel right at home on the modified “C”-shape neck, which has a .790” thickness at the 3rd fret and .825” at the 12th fret.

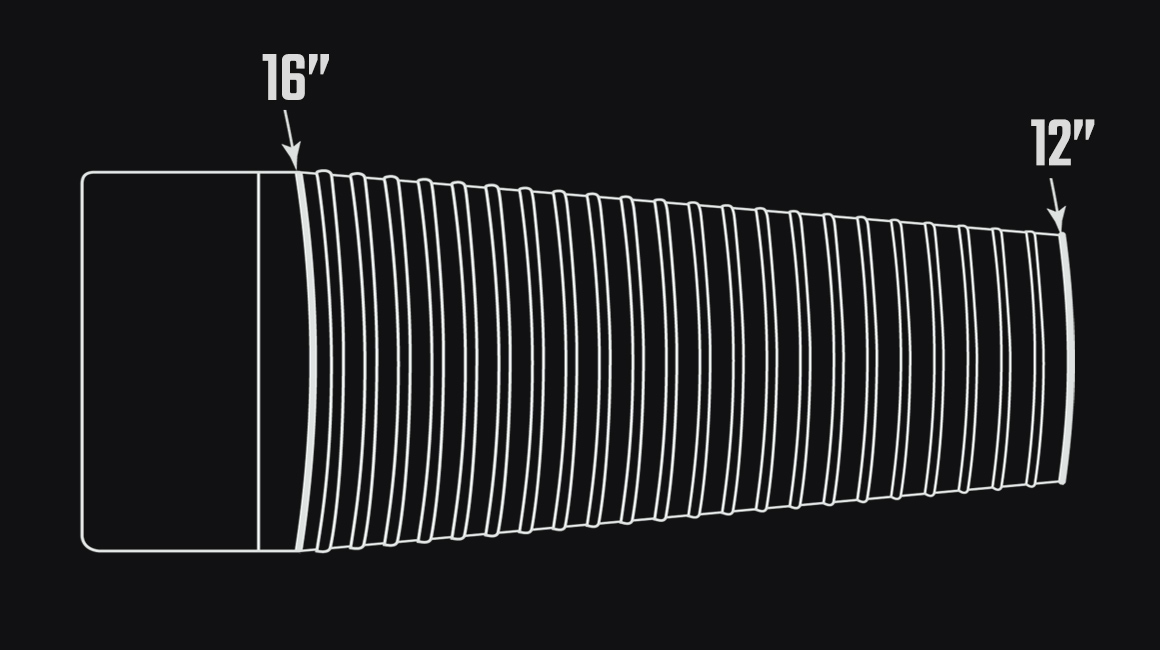

12"-16" Compound Radius Ebony Fingerboard

The innovative 12"-16" compound radius design features a fingerboard that gradually flattens toward the heel from its smaller and more rounded profile at the nut. This makes for unparalleled comfortable chording and riffing near the nut and precise shred articulation and bending near the heel. A premium wood, ebony has very tight wood grains and creates a slick and fast-playing surface. Ebony fingerboards are known for their clear and crisp attack, and favored by guitarists looking for sharp top end, pleasing brightness and articulate mid-range.

Heel-Mount Truss Rod Adjustment Spoke Wheel

Humidity and temperature fluctuations wreak havoc on a guitar’s neck. With the truss rod adjustment wheel placed at the heel of the neck, you (or your guitar tech) can quickly insert a 1.5 mm Allen wrench between the strings for seamless neck relief tweaks on the fly.

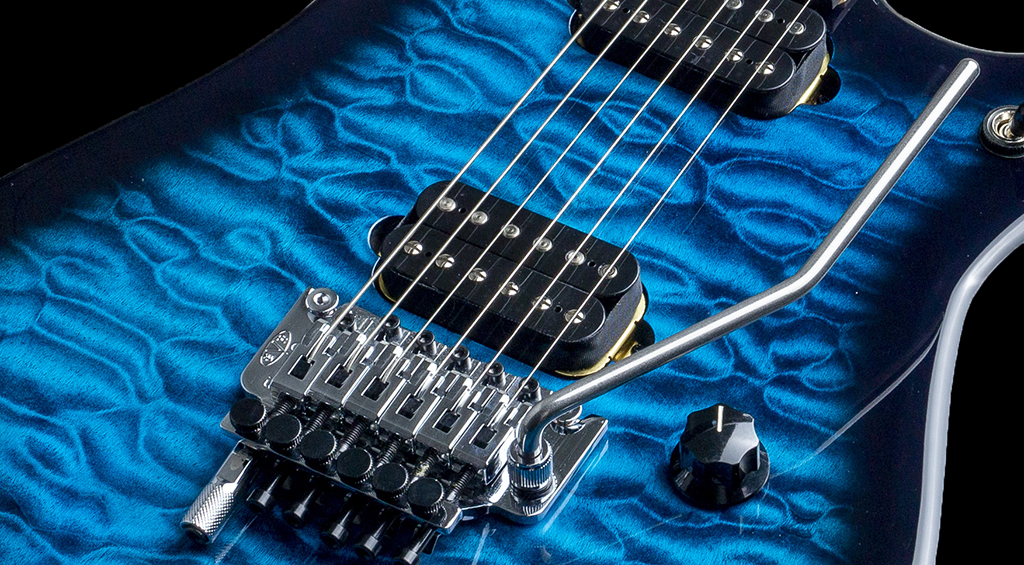

EVH-Branded Floyd Rose Locking Trem, R3 Locking Nut and EVH D-Tuna

Eddie Van Halen was the first player to popularize the innovative Floyd Rose locking tremolo, even advising Floyd Rose on his early designs to integrate round disc finger-type tuners that you would see on a cello or violin. Now universally embraced, our EVH-branded Floyd Rose bridge features our EVH logo stamped on the bridge plate, steel saddles and a solid brass block. The Floyd Rose bridge and R3 (43 mm) locking nut is a professional-grade double-locking design that secures the strings in the saddle and nut, providing ultimate tuning stability and dynamic tremolo action. Standard equipment on Eddie’s personal guitars since the early ‘90s, the EVH D-Tuna is a unique patented device that enables players to drop the E to D and back, in an instant.

Controls

Specs

General
Model Number 5108000579
Est. U.S. Street $999.99
Series 5150® Series Guitars
Color Transparent Blue Burst
Number of Strings 6
Orientation Right-Hand
Body
Body Finish Gloss Urethane
Body Shape 5150®
Body Material Basswood
Body Top Quilt Maple
Electronics
Bridge Pickup Direct Mount EVH® Wolfgang® Humbucking
Neck Pickup Direct Mount EVH® Wolfgang® Humbucking
Pickup Color Black
Controls Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
Pickup Switching 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Pickup Configuration HH
Neck
Neck Material Quartersawn Maple
Neck Construction Bolt-On with Graphite Reinforcement
Neck Thickness .790" at 3rd Fret & .810" at 12th Fret
Neck Finish Hand-Rubbed Satin Urethane
Neck Shape EVH® Modified "C" Backshape
Scale Length 25.5" (648 mm)
Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material Ebony
Number of Frets 22
Fret Size Jumbo
Nut Material Floyd Rose® R3 Locking
Nut Width 1.685" (42.8 mm)
Position Inlays Cream Dot
Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
Truss Rod Wrench 2.5 mm Hex
String Trees Floyd Rose® Retainer Bar
Headstock EVH® Hockey Stick
Neck Plate 4-Bolt Standard
Hardware
Bridge Top-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Hardware Finish Chrome
Tremolo Arm Floyd Rose® 1000 Series
Tremolo Block Brass
Tuning Machines EVH®-Branded Gotoh®
Control Knobs Black Knurled with White Indicator
Switch Tip Black
Miscellaneous
Strings EVH® Nickel Plated Steel (.009-.042 Gauges)
Strap Buttons Oversized
Accessories
Case/Gig Bag Optional EVH® Striped Hardshell (p/n 022-6100-506); Optional EVH® Black Gig Bag (p/n 022-1512-006)
Included Accessories Tremolo Arm, Hex Keys & User Manual
