Wolfgang® Special, Ebony Fingerboard
Road-tested in arenas around the world, the Wolfgang® Special is a purebred music-making machine, designed with stunning style, giant sound and high-speed playability.

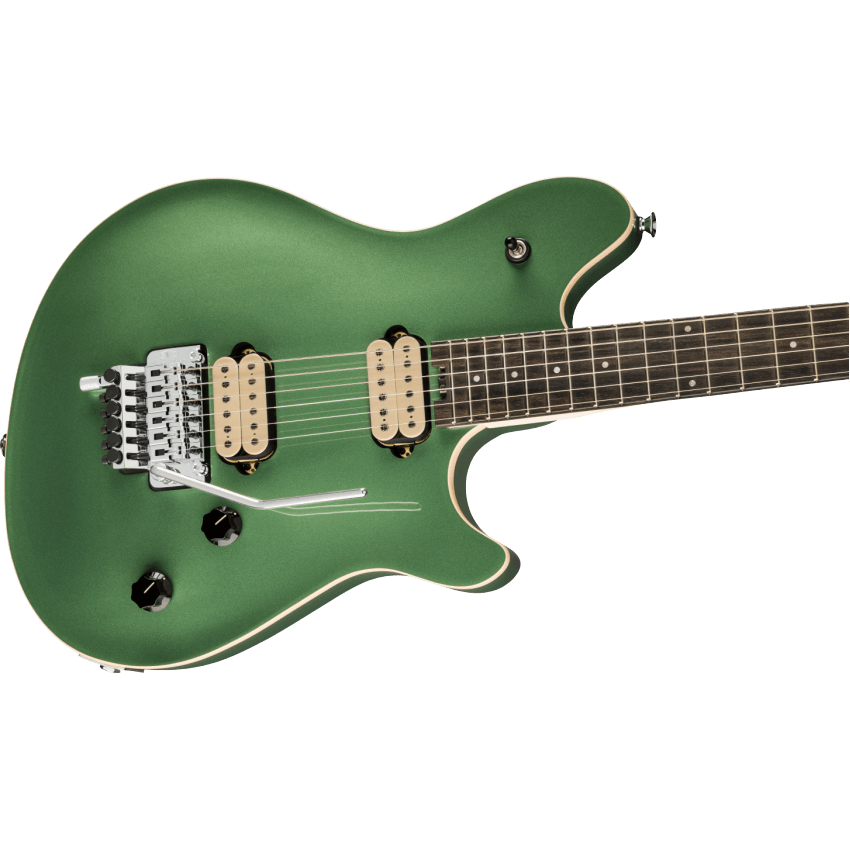

The Wolfgang Special features a basswood body with an arched top and a robust graphite-reinforced bolt-on quartersawn maple neck. The neck is carved and rolled to Eddie Van Halen's exacting specifications and features a hand-rubbed satin urethane finish on the back. Primed for high performance, energetic riffing and blazing leads, the 12"-16" compound radius ebony fingerboard has 22 jumbo frets and pearloid dot inlays. Truss rod adjustments have also never been easier thanks to a spoke wheel conveniently located at the base of the neck.
A pair of flagship custom-designed EVH® Wolfgang Alnico 2 humbucking pickups are mounted directly to the body, providing dynamic yet articulate voicing, as well as endless sustain for powerful chords and melody lines. A sturdy and dependable EVH-branded Floyd Rose® locking trem and Floyd Rose locking nut work in tandem for precise tuning even with extreme changes in pitch, while the EVH D-Tuna® retunes to drop-D and back with strict accuracy at the flick of a finger. The volume knob with treble bleed circuit has a 500K EVH Bourns® low friction pot for smooth swells and a tone control knob with a 250K Bourns high friction tone pot that prevents accidental tone shifting.
- Color Pelham Green
- Model 5107701553
- Series Wolfgang® Special
-
United States of America $1,249.99 EST. U.S. STREET
Video
Specs
General
Model Number | 5107701553 |
---|---|
Series | Wolfgang® Special |
Color | Pelham Green |
Number of Strings | 6 |
Orientation | Right-Hand |
Body
Body Finish | Gloss Urethane |
---|---|
Body Shape | Wolfgang® |
Body Material | Basswood |
Body Binding | 1-Ply Cream |
Electronics
Bridge Pickup | Direct Mount EVH® Wolfgang® Humbucking |
---|---|
Neck Pickup | Direct Mount EVH® Wolfgang® Humbucking |
Pickup Color | Parchment |
Controls | Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot) |
Pickup Switching | 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup |
Pickup Configuration | HH |
Neck
Neck Material | Quartersawn Maple |
---|---|
Neck Construction | Bolt-On with Graphite Reinforcement |
Neck Thickness | .805" at 3rd & .890" at 12th Fret |
Neck Finish | Hand-Rubbed Satin Urethane |
Neck Shape | Wolfgang® Backshape |
Scale Length | 25.5" (64.77 cm) |
Fingerboard Radius | 12"-16" Compound Radius (304.8 mm to 406.4 mm) |
Fingerboard Material | Ebony |
Number of Frets | 22 |
Fret Size | Jumbo |
Nut Material | Floyd Rose® R2 Locking |
Nut Width | 1.625" (41.3 mm) |
Position Inlays | Pearloid Dot |
Side Dots | White |
Truss Rod Nut | Heel-Mount Truss Rod Adjustment Wheel |
Truss Rod Wrench | 2.5 mm Hex |
String Trees | Floyd Rose® Retainer Bar |
Headstock | EVH® Wolfgang® |
Hardware
Bridge | EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna® |
---|---|
Hardware Finish | Chrome |
Tremolo Arm | Floyd Rose® 1000 Series Locking |
Tremolo Block | Brass |

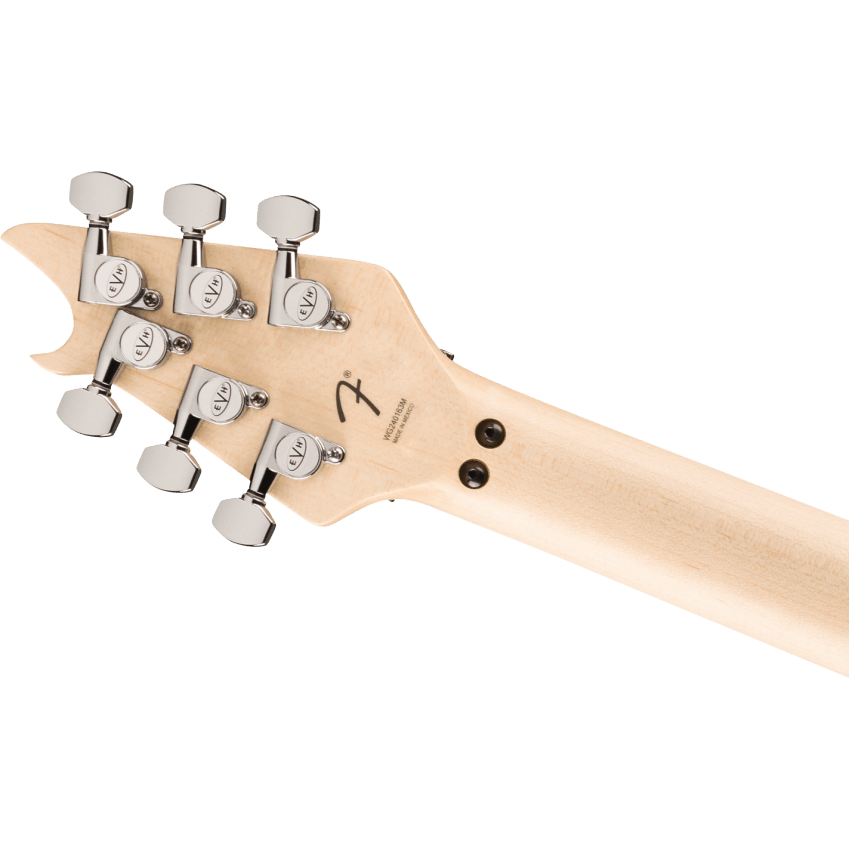

Tuning Machines | EVH®-Branded Gotoh® |
Control Knobs | Black Knurled with White Indicator |
Switch Tip | Black |
Miscellaneous
Strings | EVH® Nickel Plated Steel (.009-.042 Gauges) |
---|---|
Strap Buttons | Oversized |
Case/Gig Bag | Optional EVH® Wolfgang® Hardshell (p/n 009-0916-000); Optional EVH® Black Gig Bag (p/n 022-1512-006) |
Accessories
Included Accessories | Tremolo Arm, Hex Keys & User Manual |
---|
